If you work in manufacturing, automation, or robotics, you know that cables break. It is the most common problem in moving parts. When a machine moves back and forth thousands of times, a standard wire will crack, and your production line will stop. This costs money.
This is where PUR Drag Chain Cable comes in. But what exactly is it? Is it better than PVC? How do you buy the right one from China?
In this guide, we will break down everything you need to know. We are a cable manufacturer, and we see these cables fail (or succeed) every day. Let’s dive in.
What is a PUR Drag Chain Cable?
A simple definition for busy engineers.

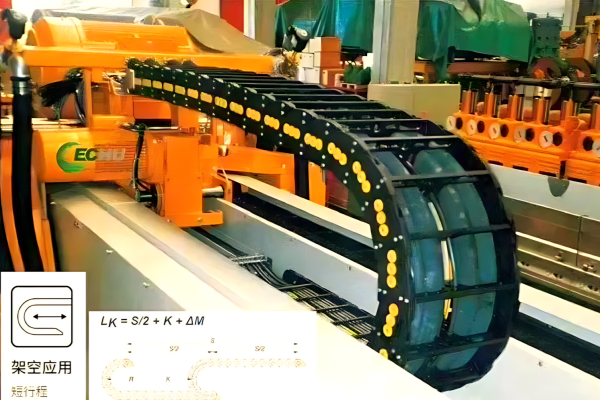

A drag chain cable (also called a chainflex or continuous flex cable) is a wire designed to move. It lives inside a “cable chain” (that plastic track you see on CNC machines).
The “PUR” part refers to the outer jacket material: Polyurethane.
Think of PUR as the “tough cousin” of PVC. Standard cables use PVC (Polyvinyl Chloride). PVC is cheap, but it gets stiff and cracks when it moves a lot. PUR stays soft, even when it drags, twists, and bends.
Why PUR is better than PVC for moving parts
You might ask, “Why not just use cheaper PVC?” Here is the truth:
- Cold Weather: PVC gets hard like a rock in cold rooms. PUR stays flexible.
- Oils and Chemicals: If your factory has oil on the floor, PVC absorbs it and gets mushy. PUR resists oil and coolants.
- Abrasion: If the cable rubs against the chain, PVC wears off quickly. PUR is like a car tire—it resists wear.
Key Features: What to Look for on the Datasheet
Don’t just buy by price. Look at these 3 things.
When you request a quote from a supplier, check the datasheet for these specific features. If they are missing, the cable might fail in six months.
1. Bending Radius (The “Tightness” Factor)
This is the most important number. It tells you how tight the cable can bend without breaking.
- Standard Cable: Needs a wide curve (e.g., 10x the cable diameter).
- PUR Drag Chain Cable: Can bend much tighter (e.g., 6x or 8x the diameter).
- Why it matters: If your machine has a small space to move, you need a cable with a small bending radius. PUR allows for tighter spaces.
2. Tensile Strength (Pulling Force)
Drag chains pull on the cable. If the copper inside is weak, the wire will snap.
Look for stranded copper (many tiny wires twisted together), not solid copper (one thick wire). Solid wire breaks if you look at it wrong!
Also, look for “aramid yarn” or “Kevlar” filling. This is a synthetic fiber (like in bulletproof vests) that takes the pulling weight so the copper wires don’t stretch.
3. Shielding (EMI Protection)
Your machine has motors and sensors. They create “noise” (Electromagnetic Interference). If your cable doesn’t have good shielding, your machine might glitch or stop working.
- Copper Braid: Good for general use.
- Copper Spiral: Better for twisting (torsion).
- Aluminum Foil: Cheaper, but breaks if bent often. Avoid this for high-movement drag chains.
Where is PUR Drag Chain Cable Used?
Real-world examples.
You will find these cables in any industry where things move. Here are the top 3 places we supply to:
CNC Machines and Robotics
Robot arms move very fast. They twist and turn. A standard cable would break in 2 weeks. A PUR cable can last for years (often 5-10 million cycles). This is critical for car manufacturing plants.
Port and Crane Systems
Cranes move heavy loads outside. They face rain, sun (UV rays), and wind. PUR is excellent outdoors because it resists UV light and moisture. It doesn’t get brittle in the sun like PVC does.
Automated Warehousing (Logistics)
Think of the conveyor belts at Amazon. They run 24/7. If a sensor cable breaks, the whole sorting system stops. PUR cables are used here because they handle constant vibration and friction against the metal tracks.
PUR vs. TPE vs. PVC: The Material Battle
Which one should you choose?
There are other materials like TPE (Thermoplastic Elastomer). How does PUR compare?
PVC (The Budget Option)
- Pros: Very cheap.
- Cons: Breaks easily. Not oil resistant. Heavy.
- Verdict: Only use if the cable does not move.
TPE (The “Green” Option)
- Pros: Halogen-free (good for safety). Flexible.
- Cons: Not as strong against heavy abrasion as PUR. Can be slippery.
- Verdict: Good for light movement, but PUR wins for heavy industry.
PUR (The Heavy Lifter)
- Pros: Extreme abrasion resistance. Oil/Chemical proof. Lightweight.
- Cons: More expensive than PVC.
- Verdict: The best choice for high-stress, moving machinery. The higher upfront cost saves you money on replacements later.
How to Buy PUR Cables from China
Advice for importers and OEMs.
China makes great cables, but quality varies. As a factory, we see many buyers make these mistakes. Here is how to avoid them.
Ask for the “Bending Cycle” Test Report
Don’t just believe the seller. Ask: “Has this cable been tested for 5 million cycles at 1.5 meters per second?”
A real manufacturer will have a test report. If they say “Yes” but can’t show a paper or video, be careful.
Check the Copper Purity
Copper is expensive. Some factories use “recycled copper” or Copper Clad Aluminum (CCA). CCA breaks easily.
Always specify: 99.99% Oxygen-Free Copper (OFC). It conducts electricity better and lasts longer. It is worth the extra 5%.
Customization is Key
Don’t buy “off the shelf” if you have a special machine. Tell the supplier:
- The exact length.
- The connector type (M12, M8, etc.).
- The color code (to match your old wires).
A good supplier will make a sample for you to test before you buy 1,000 meters.
Maintenance: How to Make Them Last Longer
Even good cables die if treated badly.
You bought the best PUR cable. Now, how do you keep it alive?
Separate Heavy and Light Cables
Don’t put a heavy power cable (480V) right next to a tiny sensor cable (24V) in the same chain. The heavy cable creates heat and magnetic noise that kills the small cable. Use a divider in the drag chain.
Don’t Let it Dangle
The cable should only move inside the chain. If part of the cable is hanging outside the chain and swinging, it will get hit by falling objects or forklifts. Keep the chain fully enclosed.
Check the Tension
If the cable is too loose, it gets tangled. If it is too tight, it stretches the copper. Adjust the “strain relief” inside the chain so the cable has about 10-15% slack to move freely.
Frequently Asked Questions (FAQ)
Quick answers to common buyer questions.
Can I use PUR cable outdoors?
Yes. PUR has excellent UV resistance and water resistance. It is much better than PVC for outdoor use.
Is PUR cable halogen-free?
It depends. Standard PUR is not halogen-free, but we can make “LSZH” (Low Smoke Zero Halogen) versions for subways, tunnels, or ships where fire safety is strict. Just ask your supplier.
What is the minimum order quantity (MOQ)?
In China, MOQ is usually 100 meters or 500 meters for standard colors. For custom colors, it might be 1,000 meters.
How long is the warranty?
Most industrial cables come with a 12-24 month warranty based on working conditions, not calendar time.
Conclusion: Is PUR Right for You?
If your machines move, vibrate, or twist, yes, you need PUR drag chain cable.
It is tempting to buy cheap PVC cables to save budget. But think about the cost of downtime. If a 50cablebreaksandstopsa100,000 machine for 4 hours, you have lost a lot of money.
PUR is an investment in reliability. It reduces friction, resists oil, and survives millions of bends.
Need a quote?
We are a cable factory specializing in high-flex PUR cables for export. Send us your drawing or specs, and we will give you a solution that fits your machine—and your budget.
