Why Your Machine Stops
Imagine this: You are running a busy factory. Your CNC machine or robotic arm is moving fast. Suddenly, everything stops. The screen shows an error: “Signal Loss” or “Emergency Stop.” You check the software, but it’s fine. You look at the moving part, and you see it—the cable is broken inside the chain.
This is a nightmare for maintenance managers. It costs time and money. But it doesn’t have to happen.
Most people use standard cables in moving parts. That is a mistake. Standard wires are stiff. They crack after a few months of moving back and forth. You need a special wire called a Drag Chain Signal Cable.
In this guide, we will explain everything you need to know. We will keep it simple. No complex math. Just real-world advice to help you buy the right cable and keep your machines running.
What Exactly is a Drag Chain Signal Cable?
Let’s break down the name. It sounds technical, but it is actually very logical.
It is built for “Drag Chains”

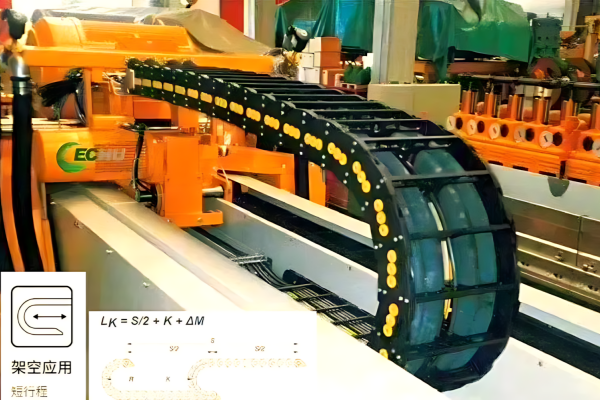

A drag chain (also called a cable carrier or energy chain) is the plastic or metal track that protects cables on robots. The chain moves, and the cable slides inside it.
It carries “Signals”
This isn’t a power cable for high voltage electricity. This cable sends data. Think of it like the nervous system of your machine. It tells the motor how fast to spin or tells the controller where the arm is located.
The “Continuous Flex” Difference
Here is the secret: Normal cables are made to be bent once and then stay still. Drag chain cables are made to be bent thousands of times. They are designed for “continuous flexing.” If you use a normal cable, it might break after 50,000 moves. A good drag chain cable can last for 5 million moves or more.
The 3 Biggest Mistakes When Buying These Cables
We talk to many buyers who just look at the price. This is dangerous. If you buy cheap cables, you pay more later in repairs. Here are the three mistakes to avoid.
Mistake 1: Ignoring the “Bending Radius”
Every cable has a limit on how sharp it can bend. This is called the bending radius.
If you bend a cable too sharply, the internal wires snap.
- The Rule: The smaller the bending radius, the better. If your machine has a tight space, you need a cable that is very flat or very flexible. Don’t guess the size. Check the datasheet.
Mistake 2: Buying Solid Copper Conductors
Solid copper is stiff. It breaks easily when moved.
You need stranded copper (many tiny wires twisted together). The more strands, the more flexible the cable. Look for “fine-stranded” or “extra-fine stranded” copper. This allows the cable to twist and turn without breaking the metal inside.
Mistake 3: Forgetting Shielding (EMI/RFI)
Factories are “noisy” places. Big motors create magnetic waves that can mess up your data signals. This is called Electromagnetic Interference (EMI).
If your cable doesn’t have good shielding, your machine might act crazy—moving on its own or showing wrong numbers. Make sure the cable has a copper braid or foil shield to block this noise.
How to Choose the Right Cable: A 4-Step Checklist
You don’t need to be an engineer to pick the right wire. Just follow these four steps.
Step 1: Check the Voltage Rating
Most signal cables handle low voltage (like 24V or 110V). But you must check. If you accidentally put high voltage into a signal cable, it will burn out instantly. Make sure the voltage rating matches your system.
Step 2: Look at the Jacket Material
The outside skin of the cable matters.
- PVC: Cheap and good for dry, indoor places. Not good with oil.
- PUR (Polyurethane): The best choice. It resists oil, coolant, and abrasion. It lasts much longer than PVC. If your machine uses cutting oil, spend the extra money on PUR.
Step 3: Pair Shielding (For Data Cables)
If you are sending sensitive data (like Ethernet or Profinet), you need pairs of wires that are individually shielded. This stops wires from talking to each other (crosstalk). It’s like having separate lanes on a highway so cars don’t crash.
Step 4: Count the Cores (Wires)
How many wires do you need? Count them.
- Pro Tip: Always add 1 or 2 spare cores. Why? Because if one wire breaks, you can use the spare without buying a whole new cable. It’s cheap insurance.
Installation Tips: Make It Last Longer
Buying a good cable is only half the battle. If you install it wrong, it will still break. Here is how to do it right.
Don’t Pull Too Hard
Cables have a “tensile strength.” This is how hard you can pull them before they break inside. Never yank the cable. If it gets stuck, don’t pull harder. Fix the blockage first.
Let it “Twist” Naturally
This sounds weird, but cables in drag chains often need to twist slightly (like a screw motion) as the chain moves. If you force the cable to stay straight (by tying it down too tight), it will wear out the jacket. Let it move freely inside the chain.
Separate Heavy and Light Cables
Don’t put heavy power cables and delicate signal cables in the same compartment of the drag chain if you can avoid it. The big power cables get hot and create vibration. This “noise” can damage the signal cable over time. Use a divider (separator) inside the chain.
Frequently Asked Questions (FAQ)
We get asked these questions all the time by our clients in the US and Europe.
Can I use a standard flexible cable instead?
Technically, yes, for a short time. But it is a false economy. Standard cables are not “cycle rated.” They might work for a week, but they will likely fail within a month in a high-speed machine. Calculate the cost of downtime. It’s usually 10x higher than the cost of a proper drag chain cable.
What is the difference between TPE and PUR jackets?
Both are good alternatives to PVC.
- TPE: Very flexible and eco-friendly. Great for general use.
- PUR: Extremely tough against oil and chemicals. Best for heavy industry like CNC machining or welding robots.
How do I know when to replace the cable?
Look for “jacket cracking” (small cracks on the outside surface) or “cold flow” (the cable gets stretched out of shape). If you see either of these, replace it immediately. Don’t wait for it to break, or it could damage your expensive machine connector.
Final Thoughts: Quality Saves Money
In the cable business, we often say: “Buy cheap, buy twice.”
For a drag chain signal cable, the price difference between a low-quality cable and a high-quality one is usually small—maybe just a few dollars per meter. But the difference in lifespan is huge. A cheap cable might last 3 months. A good one lasts 3 years.
If you are an engineer or a purchasing manager, look for suppliers who offer “cycle tests” (bending tests) data. Don’t just trust the words; ask for the proof.
