What is a Shielded Drag Chain Cable?
If you work in automation, robotics, or CNC machinery, you know that cables don’t just sit still. They move. They twist. They bend. And while they are doing all that moving, they need to send data or power without messing up.

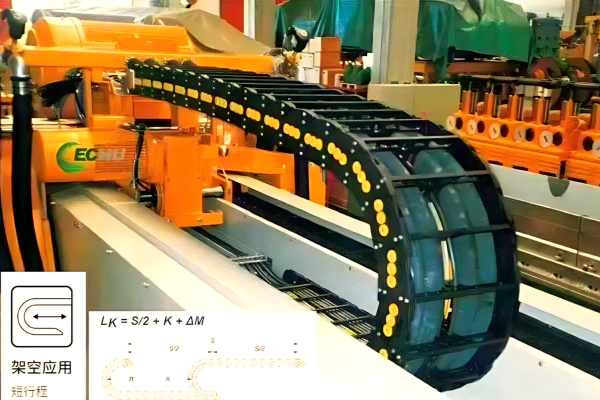

A standard cable might work for a stationary light fixture, but in a moving drag chain (also called an energy chain), a standard cable will break quickly. A shielded drag chain cable is built specifically for this harsh environment.
Think of it like a human arm. Your arm can bend, twist, and reach because your skin is flexible and your bones are protected. A drag chain cable has a special jacket (skin) that resists oil and abrasion, and a shield (bones) that protects the internal signals.
The “Shielded” part is crucial. It usually means there is a layer of copper braid or foil around the inner wires. This shield stops outside electrical noise (EMI/RFI) from getting into your data lines. If you don’t use a shielded cable in a noisy factory, your machine might glitch, lose data, or stop working entirely.
How Does the Shielding Actually Work?
You don’t need a physics degree to understand this. Imagine you are trying to have a conversation in a crowded, noisy bar. It’s hard to hear, right? Now imagine you and your friend are inside a soundproof box. You can hear each other perfectly.
The Role of EMI and RFI
Electrical noise is everywhere in factories. Big motors, welders, and VFDs (Variable Frequency Drives) create electromagnetic interference (EMI) and radio frequency interference (RFI). This noise acts like the loud music in the bar.
Copper Braid vs. Foil Shield
There are two main types of shielding you will see when you buy these cables:
- Copper Braid: This looks like a woven mesh. It is very durable and flexible. It is great for general industrial use where the cable moves a lot. It offers good protection and is easy to ground.
- Aluminum Foil: This is a thin layer of metal tape wrapped around the wires. It offers 100% coverage and is better at stopping very high-frequency noise. However, it is less flexible than braid. If the machine moves constantly, foil can sometimes crack.
For most moving drag chains, a copper braid is the safer bet because it lasts longer when bent millions of times.
Key Specs to Look for Before Buying
When you are sourcing cables from China or anywhere else, you need to check the spec sheet. If the supplier doesn’t list these, keep looking. Here is what matters:
Bending Radius (The “Tightness” Factor)
This is the most important number. It tells you how tight the cable can bend without breaking.
- Fixed installation: The cable bends once and stays that way.
- Flexing/Drag chain: The cable moves constantly.
- Rule of thumb: For drag chains, the bending radius should be roughly 8 to 10 times the cable diameter. If the radius is too small, the internal wires will fatigue and snap.
Conductor Material
- Bare Copper: Standard, cheap, good conductivity. But it oxidizes (turns green) in humid environments.
- Tinned Copper: Coated with tin. It costs a little more but resists corrosion and is easier to solder. Recommended for most export markets.
- Stranding: Look for “Fine Stranding” (Class 5 or 6). Solid wire breaks if you bend it. Stranded wire survives. The more strands, the more flexible the cable.
Jacket Materials (PUR vs. PVC)
- PVC: Cheap, but it gets stiff in the cold and gets sticky in the heat. It also doesn’t resist oil well. Avoid this for high-end drag chains.
- PUR (Polyurethane): This is the premium choice. It resists oil, coolant, and abrasion. It stays flexible even in -40°C cold. If your client is in Europe or the US, ask for PUR jacket.
Real-World Applications: Where Do You Use It?
You might be thinking, “Do I really need the expensive shielded version?” Here are three scenarios where you absolutely do:
CNC Machines and Machining Centers
A CNC machine moves rapidly back and forth. The motors generate massive amounts of electrical noise. If the feedback cable (encoder) isn’t shielded, the machine loses its position. This ruins the part being machined and can cause a crash.
Robotic Arms
Industrial robots have 6 or more axes moving simultaneously. The cables inside the arm are in a “high flex” environment. Shielded cables ensure the sensor data gets back to the controller instantly. If the signal lags, the robot moves jerkily.
Automated Assembly Lines & Conveyors
Long conveyor belts use drag chains to power sensors and cameras. If a welder is nearby on the same power line, it can send spikes of voltage into the data cables. Shielding prevents these spikes from frying the PLC (Programmable Logic Controller).
Common Mistakes to Avoid
As a procurement manager or engineer, avoiding these mistakes will save you money on returns and downtime.
Mistake 1: Mixing High and Low Voltage
Never put high-voltage power cables (like 480V motor leads) and low-voltage signal cables (like 24V sensor wires) in the same drag chain compartment. Even with shielding, the power cable can induce voltage into the signal cable.
- Solution: Use a separator (divider) inside the chain or buy a “combi cable” where the power and signal are individually shielded and jacketed together.
Mistake 2: Ignoring the “Dwell” Length
The drag chain has a “travel” length (where it moves) and a “dwell” length (where it rests). Many people buy a cable that is flexible enough to move, but the jacket is too soft and gets crushed when it sits still for weeks. Ensure the jacket has a “Shore A” hardness rating suitable for stationary crush resistance (usually around 75-80 Shore A for PUR).
Mistake 3: Poor Grounding
A shielded cable is useless if you don’t ground the shield correctly. The shield acts like an antenna; it catches the noise and needs to dump it to the ground.
- Tip: Use cable glands (strain reliefs) that are metal-to-metal contact. Don’t just twist the shield and tape it. Connect it to the control panel ground bar.
Why Quality Matters More Than Price
In the cable business, you can always find a cheaper supplier. But in a drag chain application, “cheap” usually means “will break in 3 months.”
When a cable fails in a drag chain, the cost isn’t just the $5 cable. It is the cost of the machine stopping. It is the technician’s time to open the chain. It is the lost production.
Look for manufacturers who test their cables for “Flex Cycles.” A good cable should handle 5 to 10 million cycles. Ask for the test report. If they can’t provide one, they are guessing.
Summary Checklist for Your Next Order
Before you send the PO, run through this list:
- Application: Is it moving constantly or just once?
- Environment: Is there oil, water, or cutting fluid? (Choose PUR).
- Shielding: Is there heavy machinery nearby causing noise? (Choose Copper Braid).
- Bending Radius: Is the bend tight? (Choose fine stranded conductors).
- Certifications: Do you need UL, CE, or RoHS for your target market?
Final Thought:
Buying shielded drag chain cable isn’t just about buying wire; it’s about buying reliability. Treat the cable like a moving part of the machine, not just an accessory. If you specify the right cable, your machines will run smoothly for years.
