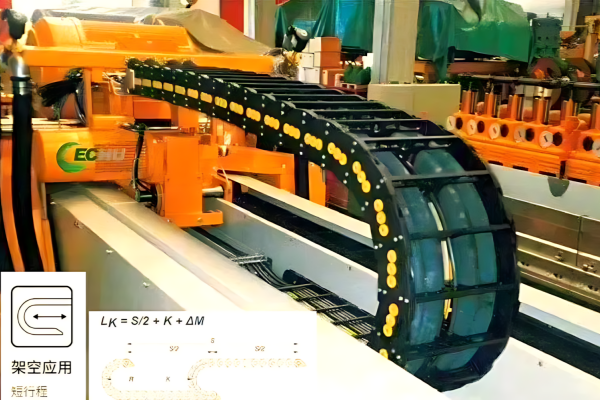

Drag Chain Control Cable: What Is It and Why Your Machines Need It
If you are buying cables for machines that move, bend, or twist, you have probably heard the term “Drag Chain Control Cable.” It sounds technical, but the idea is simple. Imagine a robot arm or a crane. It moves back and forth all day. If you use a normal wire, it will snap like a dry twig after a few weeks. A drag chain cable is built to survive this constant motion.
In this guide, we will not use complex engineering jargon. We are a cable factory in China, and we see thousands of cables fail (or succeed) every year. We will tell you exactly what you need to know to buy a cable that lasts, saves money, and keeps your machines running.
The Big Difference: Standard Cable vs. Drag Chain Cable
You might ask, “Can’t I just use a cheap PVC cable?” Technically, yes, you can put it in. But it will break. Here is the difference using simple words:
- Standard Cable: It is stiff. It is designed to sit in a wall and stay there for 20 years without moving. If you bend it 100 times, the copper inside will crack.
- Drag Chain Cable: It is designed like a human spine. It is flexible. It can bend millions of times. The copper strands are twisted in a special way to handle twisting (torsion) and pulling (tension).
If your machine stops working because a wire broke, you lose more money in downtime than you saved by buying a cheap cable.
Where Do We Use These Cables?
You will find these cables in any industry where things move. Let’s look at the most common places.
Industrial Robots and Arms
Robot arms move very fast. They need to send signals to the computer instantly. If the cable is stiff, it slows down the robot or breaks the signal. We make cables with special shielding to stop electrical noise (interference) so the robot knows exactly what to do.
Cranes and Hoists
In big ports or construction sites, the cable hangs down and moves up and down. It also has to resist oil, water, and sunlight. A standard cable will get hard and crack in the sun. A good drag chain cable has a special jacket (outer skin) that resists UV rays and chemicals.
CNC Machines and 3D Printers
These machines move very precisely. If the cable is too thick or heavy, it creates “drag.” This makes the machine less accurate. We produce “PUR” or “TPE” jackets for these cables because they are very light and glide smoothly inside the chain.
How to Choose the Right Specs
When you ask a supplier for a quote, they will ask for specs. Here is a cheat sheet so you sound like a pro.
Conductor Material: Copper vs. CCA
Always ask for Bare Copper or Tinned Copper.
Avoid CCA (Copper Clad Aluminum). CCA is cheaper, but it breaks easily when bent. It also has higher resistance, meaning your machine might not get enough power. As a factory, we strongly recommend pure copper for moving parts.
Insulation and Jacket Materials
This is the plastic part. Here are the three main types you will see:
- PVC: The cheapest. Good for slow movements or dry indoor places. Not good for cold weather (it gets brittle).
- PUR (Polyurethane): The “Gold Standard.” It is very tough against oil, abrasion, and twisting. It is more expensive but lasts 3x longer than PVC.
- TPE: A mix of rubber and plastic. Very flexible and eco-friendly. Great for medium-duty applications.
Shielding: Do You Need It?
Shielding is a metal wrap (usually copper braid or foil) around the wires.
- Yes, you need it if: The cable is near big motors or inverters. These create “electrical noise” that can mess up your control signals.
- No, you don’t need it if: It is just for simple power (like lighting) or in a very clean environment.
The “Bending Radius” Rule
This is the #1 reason cables fail. Every cable has a “Minimum Bending Radius.” Think of it like a hose. If you bend it too sharp, it kinks.
The rule is simple: Don’t bend the cable tighter than 8 to 10 times its outer diameter.
For example, if your cable is 10mm thick:
- 10mm x 8 = 80mm.
- Do not bend it in a curve smaller than 80mm.
If your machine design is tight and forces the cable to bend sharply, you must buy a “High Flex” cable. These are designed for tight spaces. If you ignore this rule, the insulation will tear, and you will have a short circuit.
Why Buying Direct from a Chinese Factory is Smart
You might be buying from a big distributor in the US or Europe. That is fine, but you are paying extra for their warehouse and profit margin. Here is why working directly with us (the manufacturer) is better for you.
Customization is Easy
Big brands only sell standard colors (usually orange or black). If you need a specific color for your brand, or a special print on the cable jacket, we can do it. We can change the length, the connector type, and the core colors instantly.
Faster Lead Times for Urgent Orders
Distributors sometimes take 4 weeks to ship. As a factory, if we have the raw material, we can make and ship in 7-10 days. We know that in business, time is money.
Cost Savings
You cut out the middleman. You get the factory price. You can use that extra budget to buy better materials (like PUR jackets) for the same price you would pay for cheap PVC cables elsewhere.
FAQ: Common Questions from Our Clients
Q: How long will this cable last?
A: It depends on the movement. A good high-flex cable can do 3 to 5 million cycles (bending back and forth). A cheap cable might only do 50,000. If your machine moves 100 times a day, the good cable lasts 80 years (theoretically!), while the cheap one breaks in less than 2 years.
Q: Can I mix power and signal in one cable?
A: Yes, we make “Hybrid Cables.” These have thick wires for power and thin twisted pairs for data/signals in one jacket. This saves space in the drag chain.
Q: What is the difference between “Unshielded” and “Shielded”?
A: Unshielded is like a simple wire. Shielded has a metal mesh around the core to block outside electricity. If your factory has a lot of heavy VFDs (Variable Frequency Drives), always use Shielded cable, or your sensors will act crazy.
Final Checklist Before You Order
Before you send us your inquiry, check these 4 points to make sure you get the right quote:
- Voltage: Is it 300V, 500V, or 600V? (Control cables are usually 300/500V).
- Cores: How many wires inside? (e.g., 2 core, 4 core, 10 core, or 19 core).
- Gauge (AWG or mm2): How thick is each wire? (e.g., 0.75mm2 or 18 AWG).
- Environment: Will it touch oil? Is it outside in the sun? Is it cold?
If you tell us these details, we can recommend the exact material (PUR, TPE, or PVC) that fits your machine perfectly.
Ready to get a quote? Send us your specs today. We offer free samples so you can test the flexibility yourself before placing a big order. Let’s build a cable that doesn’t break.
